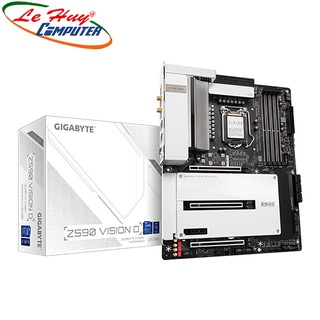

Mainboard GIGABYTE Z590 VISION D

Giới thiệu Mainboard GIGABYTE Z590 VISION D

Tên Hãng

GIGABYTE

Model

Z590 VISION D

CPU hỗ trợ

Intel

Chipset

Z590

RAM hỗ trợ

1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

2. Dual channel memory architecture

3. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

5. Support for Extreme Memory Profile (XMP) memory modules



Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots

Ổ cứng hỗ trợ

CPU:
1 x M.2 connector
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2B_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)
6 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
2 x temperature sensor headers
1 x Clear CMOS jumper
1 x Q-Flash Plus button 1 x Q-Flash Plus button

Cổng kết nối (Back Panel)

1 x DisplayPort In port
1 x HDMI port
2 x SMA antenna connectors (2T2R)
2 x Thunderbolt™ 4 connectors (USB Type-C® port, with USB 3.2 Gen 2 support)
2 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks

LAN / Wireless

1. 2 x Intel® 2.5GbE LAN chips (2.5 Gbit/1 Gbit/100 Mbit)

Intel® Wi-Fi 6E AX210

1.WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band

2. BLUETOOTH 5.1

3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.

Kích cỡ

ATX Form Factor
30.5 cm x 24.4cm
